Process Monitoring

Journal of Laser Applications  03/2025

Layer detection in ultrashort pulsed multilayer laser ablation by analyzing ultrasonic process emission

Authors:

Christian Lutz, Cemal Esen, Ralf Hellmann

Contents:
  • Laser ablation is used for processing electronic applications (e.g. PCB)
  • This paper presents the detection of material transitions during laser ablation by analyzing acoustic data captured with an optical microphone.
  • The focus of this work was on the material transition between polyimide and copper. Due to the higher removal rate in polyimide compared to copper, a    significant increase in acoustic energy was detected at the material transition.
  •  In addition to detecting material transitions, a correlation between the emitted acoustic energy and layer thickness was observed.

Link

17th CIRP Conference on Intelligent Computation in Manufacturing Engineering (CIRP ICME ‘23)  08/2024

In-situ acoustic signals correlation of process parameters in laser powder bed fusion

Authors:

Levent Subasi, Soner Oren, Gokhan Dursun, Cagdas Sen, Akin Orhangul

Contents:
  • Laser powder bed fusion (LPBF) is a metal additive manufacturing technique in which repeatability is a major concern in quality results.
  •          An optical microphone was used to monitor the acoustic emission during the LPBF process.
  •          The analysis showed a strong correlation between the acoustic signals and the process parameters.
  •         This methodology allows for the evaluation of process flaws and overall quality.
Link

Applied Sciences 10/2024

Acoustic Emission and Digital Image Correlation-Based Study for Early Damage Identification in Sandwich Structures

Authors:

Aitor García de la Yedra, Igor Erro, et al.

Contents:
  • Monitoring the quality of complex sandwich structures is difficult with common testing techniques for accessibility reasons
  • A novel approach to solve this issue is enabled by acoustic monitoring in the ultrasound regime with the Optical Microphone
  • The results from acoustic monitoring were compared to findings obtained with digital image correlation
  • It could be shown that early identification of structural damage is possible with the Optical Microphone
Link

Additive Manufacturing 01/2024

Healing of keyhole porosity by means of defocused laser beam remelting: Operando observation by X-ray imaging and acoustic emission-based detection

Authors:

Charlotte de Formanoir, Milad Hamidi Nasab, et al.

Contents:
  • In Laser Powder-Bed Fusion (LPBF) the unpredictable formation of defects such as pores can lead to compromised mechanical properties
  • Using XARION’s optical microphone a strategy for monitoring in-situ healing of pores through laser remelting was implemented
  • Acoustic signals acquired during laser remelting are temporally synchronized and analyzed with X-ray images to identify acoustic signatures of the pore healing event
  • The approach presented in this paper enables precise monitoring of defect healing during the LPBF process without the use of elaborate machine learning algorithms
PDF

SPIE. Photonics West 01/2024

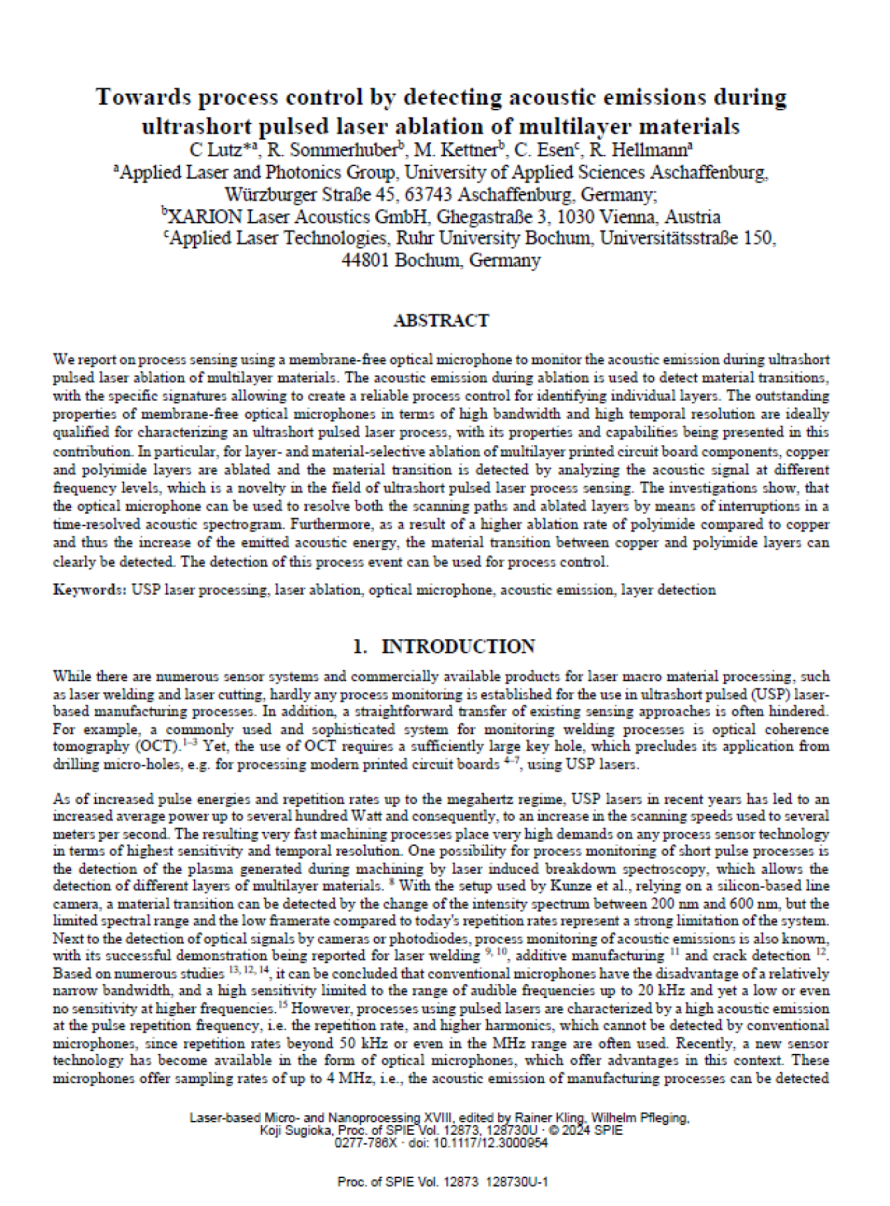

Towards process control by detecting acoustic emissions during ultrashort pulsed laser ablation of multilayer materials

Authors:

C. Lutz, R. Sommerhuber, M. Kettner, C. Esen, R. Hellmann

Contents:
  • Ultra-short-pulsed laser ablation of thin multilayer materials can be monitored using XARION’s Eta450 Ultra optical microphone
  • It is possible to monitor the material transition between polymer and copper during laser ablation by observing a broad acoustic frequency spectrum between 100 kHz and 2 MHz in air, and by detecting a sudden change in acoustic energy
  • A direct correlation was found between increased detected acoustic energy and higher ablation rate
Link

Nature Communications 12/2023

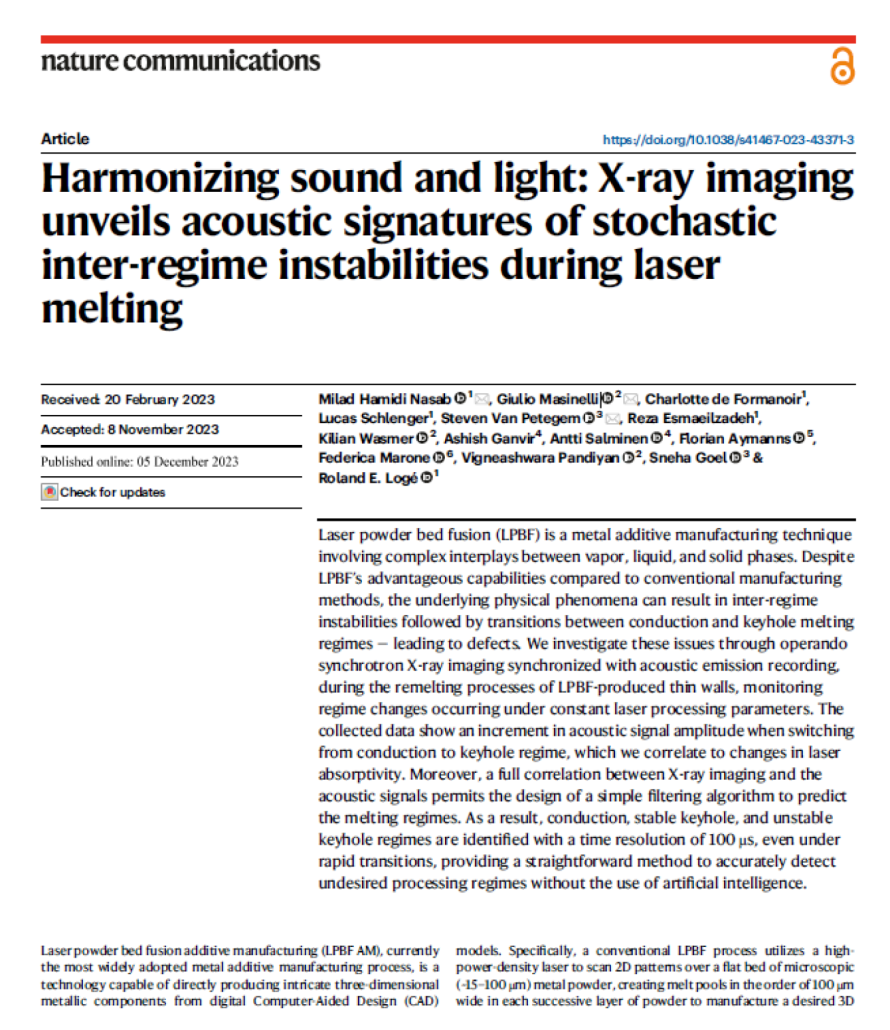

Harmonizing sound and light: X-ray imaging unveils acoustic signatures of stochastic inter-regime instabilities during laser melting

Authors:

Milad Hamidi Nasab, Giulio Masinelli, et al.

Contents:
  • Laser Powder Bed Fusion Additive Manufacturing (LPBF AM) is a metal additive manufacturing process capable of directly producing intricate three-dimensional metallic components from CAD models
  • The present work deploys high-speed synchrotron X-ray imaging to scrutinize keyhole melting instabilities in LPBF and correlates these with the process’ acoustic emission (AE)
  • XARION’s optical microphone was used to measure airborne AE from the interaction zone between laser and material
  • The transition between conduction, stable keyhole, and unstable keyhole regimes, which leads to porosity formation and other instabilities, can successfully be discerned using the AE data
PDF
Wood Material Science

Wood Material Science & Engineering 05/2023

Supervised classification of wood species during milling based on extracted cut events from ultrasonic air-borne acoustic signals

Authors:

Mehieddine Derbas, Stephan Frömel-Frybort, Christian Laaber, Hans-Christian Möhring, Martin Riegler

Contents:
  • Monitoring during wood processing is gaining momentum in order to increase efficiency and enable adaptive manufacturing
  • Acoustic monitoring is particularly suited for the cutting/milling process
  • Derbas et al. developed a Machine Learning model to distinguish between wood species with up to 93% accuracy using single-cut events
Link

Optics and Laser Technology 04/2023

A comprehensive study on water jet guided laser micro hole drilling of an aerospace alloy

Authors:

Levent Subasi, Mustafa I. Gokler, Ulas Yaman

Contents:
  • Water-Jet Guided Laser Drilling is a process particularly suited for manufacturing of thin and long holes in metals
  • In this study, the Optical Microphone has proven to be a suitable sensor for monitoring the hole depth and the moment of hole breakthrough in real-time
Link
Inline Process Monitoring

12th International Electric Drives Production Conference (EDPC) 01/23

Inline Process Monitoring of Hairpin Welding Using Optical and Acoustic Quality Metrics

Authors:

Markus Omlor, Johannes Reith, et.al.

Contents:
  • XARION´s Optical Microphone was used to capture airborne ultrasound generated during the hairpin welding process
  • A multitude of welds were performed under varying quality-affecting parameter conditions, such as positioning misalignments or focal height and laser power deviations
  • It was found that the real-time ultrasound emission could be utilized as an early indicator for predicting the important quality criterium of final cross-sectional area of connection
Link

Proceedings of LANE 2022 Erlangen 09/2022

Monitoring of remote laser processes using air-coupled ultrasound

Authors:

R. Sommerhuber, M. Kettner

Contents:
  • XARION’s optical microphone was used for contact-free monitoring of laser processes by comparing the acoustic emissions of the process to known reference signals
  • In this paper, this monitoring method was shown to be able to detect defects and irregularities in the welding of metal sheets and of direct copper bonded substrates
PDF
