Ultrasonic Testing Sensor Array

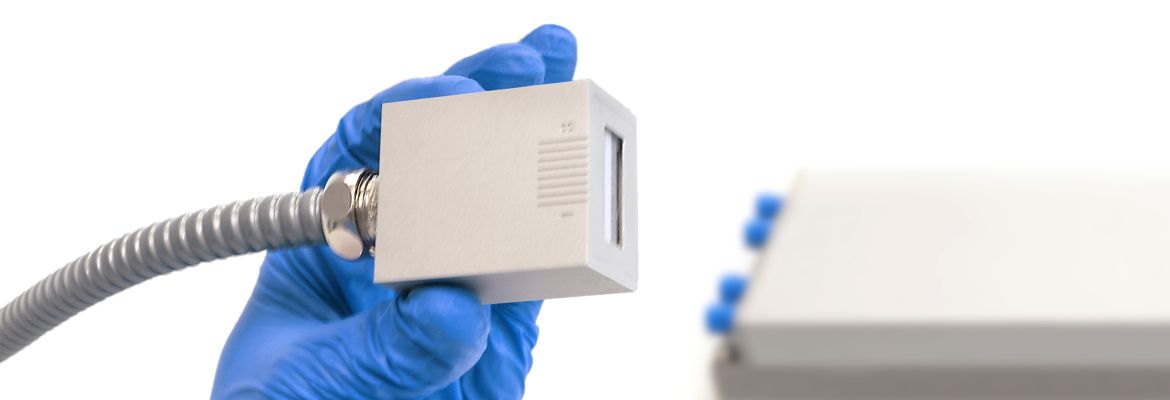

This ultrasonic receiver array integrates eight or sixteen Optical Microphones in a compact sensor head. It enables high-speed, contact-free ultrasonic testing without requiring water or gel and is ideally combined with XARION's line-profile ultrasound generation laser for fast and reliable inspection.

Features

• High-throughput of 50 m²/h (500 f²/h)
• Compact sensor head
• Eight channels with 2 mm pitch
• Sixteen channels with 1 mm pitch
• Custom channel count and pitch available on request



Publications

• Air-Coupled Ultrasonic Inspection of Fiber-Reinforced Plates Using an Optical Microphone
• Impact damage assessment in biocomposites by micro-CT and innovative air-coupled detection of laser-generated ultrasound
• Material characterization via contact-free detection of surface waves using an optical microphone
• Ultrasonic Testing Sensor Array
• Ultrasound inspection of spot-welded joints
